Model S20
S20

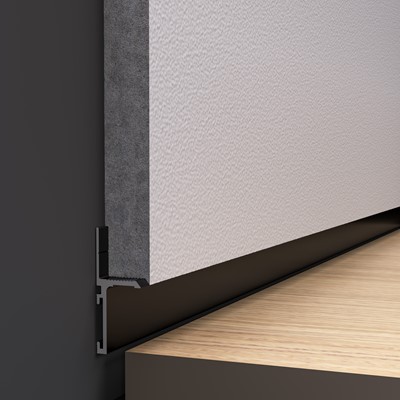

floor shadow gap for precise architectural finishing

The S20 shadow gap profile creates an elegant separation between floor and wall, enhancing the clean, modern lines of any space. Its defined edge gives the wall a floating appearance and the floor a refined, structured look.

product-features:

  • for masonry and drywall including protection foil
  • black anodized
  • profile lenght: 2,000 mm
  • profile heigh: 20+17 mm
  • profile depth: 14 or 13,5 mm
  • recess: 11 mm
  • max. shadow gap height: 20 mm





Assembling video model S20 & S22 for masonry



Assembling video model S20 & S22 for drywall

Modell S20

Model S20

Downloads

for architects and designers


OUR SYSTEM, YOUR CHOICE

Choose the height of the profile and download the desired information, drawings and templates.



S20 masonry
Max. height shadow gap 20mm
Item no 10020
Detail profile
dwg pdf
Sectional drawing for masonry
dwg pdf
Controll edges
pdf
Tender specification
pdf
S20 drywall
Max. height shadow gap 20mm
Item no 10020
Detail profile
dwg pdf
Sectional drawing for drywall
dwg pdf
Controll edges
pdf
Tender specification
pdf
