Model S22
Model S22
subtle shadow gap with architectural effect

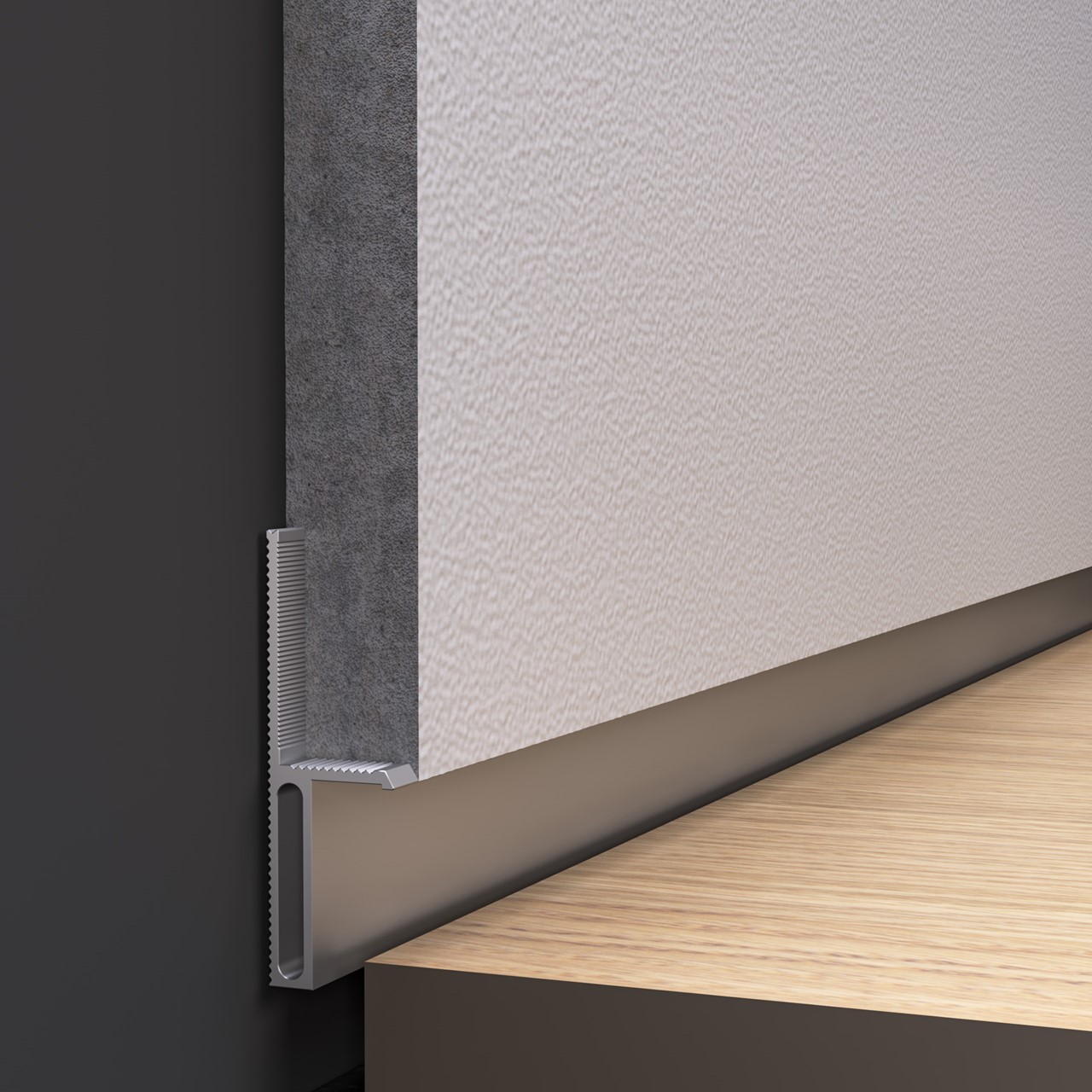

The S22 shadow gap profile creates an elegant separation between floor and wall, enhancing the clean, modern lines of any space. Its defined edge gives the wall a floating appearance and the floor a refined, structured look.

product-features:

  • for masonry and drywall including protection foil
  • black anodized
  • profile lenght: 2,000 mm
  • profile heigh: 22+25 mm
  • profile depth: 15 or 13,2 mm
  • recess: 9,7 mm
  • max. shadow gap height: 22 mm







Assembling video model S20 & S22 for masonry



Assembling video model S20 & S22 for drywall

Modell S22

Model S22

Downloads

for architects and designers


OUR SYSTEM, YOUR CHOICE

Choose the height of the profile and download the desired information, drawings and templates.

S22 masonry
Max. height shadow gap 22mm
Item no 10022
Detail profile
pdf
Sectional drawing for masonry
dwg pdf
Controll edges
pdf
Tender specification
pdf
S22 drywall
Max. height shadow gap 22mm
Item no 10022
Detail profile
pdf
Sectional drawing for drywall
dwg pdf
Controll edges
pdf
Tender specification
pdf
