for uncompromisingly invisible design
GENULUX is a wall-integrated sliding door system with a frameless appearance, designed for contemporary architecture. The flush sliding door disappears seamlessly into the wall and is suitable for drywall and solid wall construction, as well as for timber and all-glass doors. The pre-assembled Hawa sliding system, optional push-to-open function, and integrated LED elements ensure maximum comfort, easy installation, and complete design freedom. For detailed installation instructions, please refer to the installation manual and the video below.
The track system, including hydraulic soft-close dampers and ball-bearing rollers, comes pre-assembled and ready for installation with door panels of 40–44 mm thickness to guarantee a fast installation. The track is fully accessible and removable for maintenance or servicing - without structural intervention.
For an even warmer living atmosphere, GENULUX offers the option of integrating an LED strip directly along the door edge.
The optional push-to-open function with integrated soft-close mechanism ensures maximum convenience when opening and closing.
The height-adjustable door panel reduces light transmission to a minimum. The result: maximum light blocking for enhanced privacy.
The integrated HawaPorta system, with a load capacity of 100 kg and precision ball-bearing rollers, ensures smooth and exceptionally quiet door movement. The standard hydraulic soft-close system can be complemented with the Porta Push-to-Open function (for clear opening widths of ≥730 mm).
GENULUX is universally applicable. Whether masonry or drywall construction, the system covers both applications. This eliminates duplicate inventory and differing product specifications.
Whether wooden door or full-glass panel — the choice is yours. GENULUX remains fully flexible and can also accommodate the HawaPorta 100 G glass set as an option. Retrofitting after installation is no issue.
The factory-supplied, click-in plaster mesh effectively prevents stress cracks. A detail that reflects visible quality and ensures maximum flexibility, even for customized solutions.

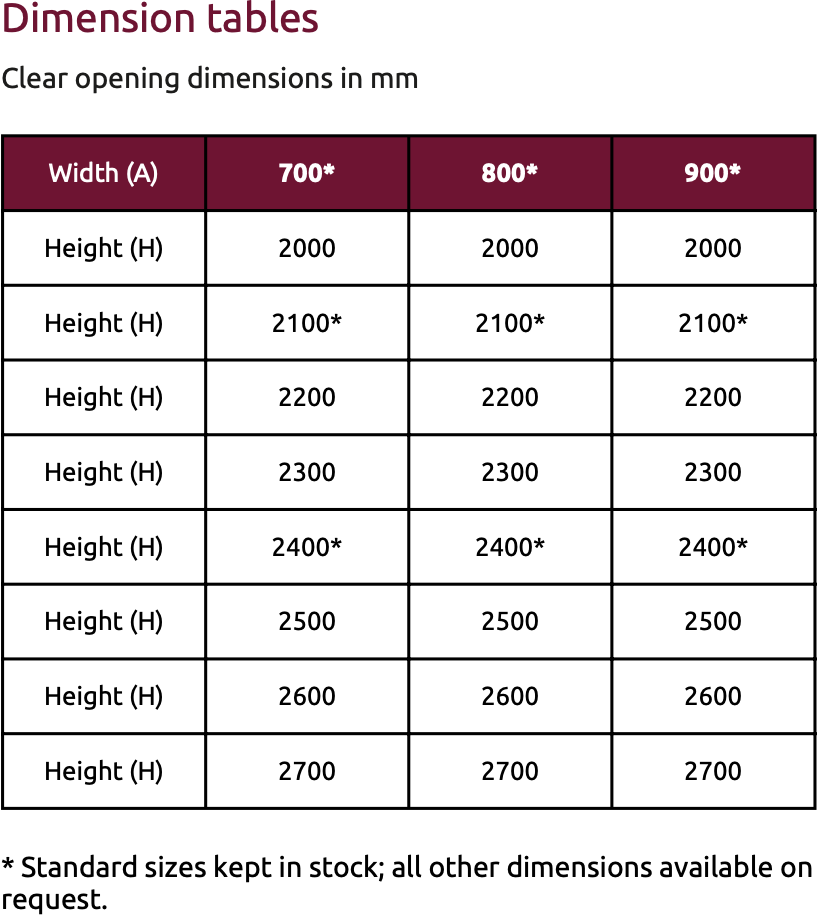

Our wall-integrated sliding door system with a frameless appearance is available in the dimensions listed below. For other dimensions, please send your enquiry to info@ags-systems.com.
Click here to view the corresponding detail and section drawings.
Here you can get general information, product pictures, standards and hints on our sliding door pocket system.
For installation instructions, please contact info@ags-systems.com.
